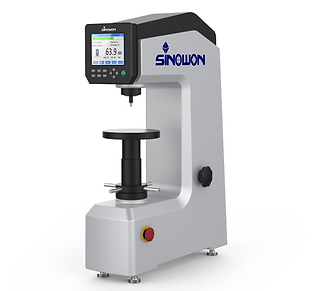

DigiRock DS3 Digital Superficial Rockwell
Model
Code#
Warranty
Delivery Time
Standard
Certificate
DigiRock DS3
811-230
15-month
15-30 days
GB/T230.2, EN-ISO 6508 , ASTM E-18
CE
Product feature
-
Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
-
Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
-
Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
-
Auto hardness conversion to others scales, no need to check table and improve working efficiency.
-
Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
-
With 2000 single testing results and 1000 group results. Reviewing results and analysis.
-
Optional bluetooth mini printer is available
Specification
Product Name
Model
Code#
Rockwell Scales
Preliminary Test Force
Addtional Test Fore
Dwell Time
Hardness Indication
Resolution
Loading Control
Hardness Conversion
Conversion Standard
Language Option
Correction Range
Data Memory
Data Output
Max. Height Of Specimen
Instrument Throat
Power supply
Dimension(LxWxH)
Packing Dimension
Gross/Net Weight
Execution Standard
Digital Superficial Rockwell Hardness Tester
DigiRock DS3
811-230
HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
3Kgf(29.42N) Permitted Error：±2.0%
147.1N(15kg)、294.2N(30kg)、441.3N(45kg) Permitted Error:±1.0%
Adjustable 1-60s
5.2” Touch Screen, Resolution:640x480
0.1HR
Auto Loading/Dwell/Unloading
HRC、HV、HBS、HBW、HK、HRA、HRD、HRB
ASTM、DIN
Chinese, English, German, Portuguese, Turkish, Czech, Korean
-3.0HR to +3.0HR, Step 0.1HR
2000 Single Measuring Result, Curve Analysis, Results, Reviewing And Analysis
Optional Blue Tooth Mini Printer
175mm
165mm
AC220V/50Hz;AC110V/60Hz
546x182x755mm
620x460x870mm
120Kg/90Kg
GB/T230.2, EN-ISO6508, ASTME-18
Application
